€2.800.00
· Up to 8 HDDs, 1000 channels
· 16 1080P decoding
· Video input/output 400M
· Recording/forwarding channel 200
Available on backorder

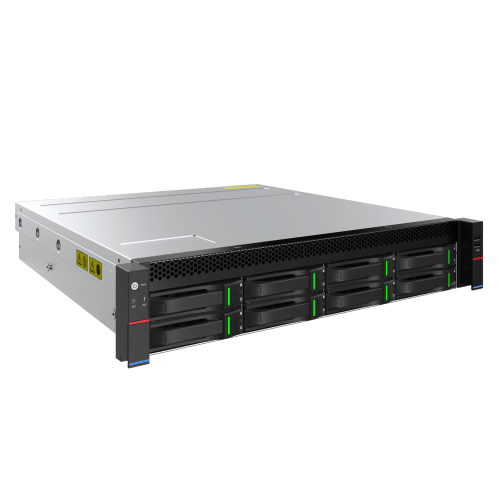

The K1000 is an all-in-one server that combines Tiandys powerful video central management system, Easy7 CMS, with stream service and storage service. The K1000 can manage network cameras for recording, live view, playback, E-map, video wall etc,. With the power of VMS, sophisticated alarm management is possible, as well as central management. The K1000＇s unique design provides both powerful storage and advanced centralized video management capabilities.
· 2U front panel HDD slots design, support up to 8 HDDs
· Support centralized storage, decoding, forwarding and management of IP cameras, stream servers, NVRs and decoders, up to
1000 channels
· Support 2 HDMI & 1VGA output interfaces and 16 1080P decoding
· Linux OS embedded operating system
· Support web management UI
· Video input bandwidth 400M, output bandwidth 400M;
Video recording channel 200/ Forwarding channel 200 ( Disable face recognition)
· Support local video storage
· Support NTP function
· Support RAID 0/1/5/6/10/50/60
· Able to operate the configuration and monitor the status of disk and RAID group by adopting visible management UI
· Able to conduct human, vehicle, attendance, device and access control
· Able to conduct face search
· Able to conduct early warning linkage
| Date | Title | Type | Download |
|---|---|---|---|
| 2021-12-09 | K1000 |  |
| Main Functions | |
| Device management | Support management of IP cameras, NVRs and network video encoder/decoders |
| Support configuration of device information and account authority | |
| Support detection of device status | |
| Live view | Support auto switch of main and sub stream, live windows can be drag to form a large single window. Live windows can be divided into 4/6/8/10 mode or 1-5/1-7 consist of main/sub stream. The number of screens per row/column can be customized up to 64 as well. Supports electronic zoom, image capture. Supports switch by single channel, group or all channels, users can customize switch plan |
| PTZ control | Support pan tilt and zoom control including 8 directions control, zoom/aperture/focus settings, preset settings, wiper control and 3D positioning |
| Video management | Support recording template that users can easily arrange start time, end time, week time and recording duration |
| Video playback | Support device storage/centralized storage/local storage and multiple method for searching video |
| Support timing video recording, playback, video download, image capture, multi-speed playback in server | |
| Video wall | Support video wall template configuration and video switch |
| Event management | Support multiple alarm types and linkage of alarm input and output interfaces. Events can be prioritized by importance |
| Intelligent analysis | Support linkage of VCA functions |
| Alarm linkage | Support linkage of alarm output, video recording, sound, pop on video wall, e-map, image capture and preset of PTZ |
| User management | Support user account management like setting authority and expiration time |
| Log management | Support recording log like adding, deleting and modifying for each module independently |
| Support searching and exporting log information for each module | |
| E-map | Support using super high-resolution picture as e-map background |
| Support google GIS map and different surveillance icons overlay on maps | |
| Two-way audio | Support two-way audio to devices and volume is adjustable |
| Decoding | Support 2 HDMI& 1VGA output interfaces and 16 1080P decoding |
| Compatible devices | Support access of IP cameras, NVRs, centralized storage and servers. |
| Support 150 channels access via ONVIF protocal and 500 channels via Tiandy private protocal. Support 1000 channels via Tiandy private protocal only. |
|
| Group management | Support adding, modifying, searching and deleting the organization structure and offical authority |
| Face management | Support up to 50 face recognition cameras connection |
| Support up to 5000 face pictures each library | |
| Support analysis and statistics of face alarm | |
| Support to search picture by picture and search face picture by time or name | |
| Specifications | |
| CPU | 64-bit multicore processor |
| Memory | 24GB (3×8GB, 4 memory slots), maximum 64G |
| OS HDD | 32G SSD |
| Network interface | 4xRJ45 self-adaptive 10/100/1000 Mbps network interfaces |
| Data HDD | Up to 8 disks |
| HDD type | 2.5″ or 3.5″ SATA |
| HDD capacity | 4/6/8TB enterprise HDD 4/6/8/10TB surveillance HDD |
| Interfaces | 2 USB 2.0 ports in front panel, 2 USB 3.0 ports in rare panel 2 HDMI, 1 VGA 2 RS485, 1 RS232 8 alarm input, 4 alarm output |
| RAID | RAID 0/1/5/6/10/50/60 |
| General | |
| Power supply | AC200V～AC240V, 50Hz |
| Power consumption | Rated power: 350W Peak power: 200W Average power: 180W |
| Working temperature | 5℃~40℃ |
| Working humidity | 10％～90％(RH) |
| Dimensions | 535mm(L)×446mm(W)×88.5mm(H) |
| Software | |
| Management platform | WEB GUI |
| Management software | IPC access management, Recording file management, Alarm linkage |
| IPC channels | 1000 |
| User account | 100 |
| Middleware adapter | 1 |
| Middleware number | 1(Default) |
| Icon overlay on map | 1000 |
| Person information | 10000 |
| Face recognition camera access Maximum | Maximum 50 |
| ANPR camera access Maximum | Maximum 25 |
| Access control PAD (ID card) Maximum | Maximum 70 |
| Face turnstile Maximum | Maximum 24 |
| Log record 500,000 per 90 days | 500,000 per 90 days |
| Alarm record 5,000,000 per 90 days | 5,000,000 per 90 days |
| Face Pad record 3,000,000 per 90 days | 3,000,000 per 90 days |
| Face capture record | 2,000,000 per 90 days |
| Attendace record(1000 people) | 365,000 per year |
| Dynamic Statistics * The following listed numbers are peak performance, they may not be supported at the same time |
|
| GPS location reported | 10/S |
| Access users | 50 |
| Online users | 100 |
| Access APP | 100 |
| Alarm go off per second | 8 |
| Picture performance | Send/Receive 25 pictures/S Less than 550K each picture, up to 18,000 pictures every day |
| Video performance (Picture and video storage in same time) | |
| Video storage capability | Up to 180 channels (2Mbs, H.265) |
| Video forwarding capability | Up to 180 channels forwarding and decoding combined (2Mbs, H.265) |
| Decoding capability | Up to 16 channels in main stream (1080P, 2Mbs, H.265) |
| Video switching | Up to 16 channels in main stream (1080P, 2Mbs, H.265) |
| Video performance (Video storage only) | |
| Video storage capability | Up to 200 channels (2Mbs, H.265) |
| Video forwarding capability | Up to 200 channels forwarding and decoding combined (2Mbs, H.265) |
| Decoding capability | Up to 16 channels in main stream (1080P 2Mbs H265) |
| Video switching | Up to 16 channels in main stream (1080P 2Mbs H265) |
